| Dimensions | Inches | Millimeters |
|---|---|---|
| Outer Lip Diameter | 0.87 | 22.1 |
| Overall Height | 1.07 | 27.2 |
| General Information | |||
|---|---|---|---|
| Material | See Below | Thread Size | 1/8 NPT MALE |
| Mounting Type | Threaded | Cleats | Yes |
| Number of Bellows | 1 | Suggested Use | Uneven Surface |

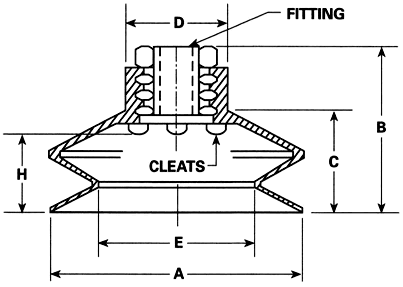

| Style J Dimensions | Inches | Millimeters |
|---|---|---|
| Dimension A | 0.87 | 22.1 |
| Dimension B | 1.07 | 27.2 |
| Dimension C | 0.46 | 11.7 |
| Dimension D | 0.62 | 15.7 |
| Dimension E | 0.46 | 11.7 |
| Dimension H | 0.45 | 11.4 |
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
|---|---|---|---|---|
| Vinyl | +32 - + 125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - + 125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - + 125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - + 150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - + 400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - + 400 F | Good | Good | A40 - A55 Range |
